Manually Exporting Files *2.0 Beta*

Purpose

The manual data export feature copies selected files from their existing storage location(s) to a selected storage location. The exported files will be written in their native data format. Manual data export can be used to migrate your files between storage systems, to create a copy of files in a specific storage location, or to extract your data and review the files when they are stored in the Aparavi data format (which is stored securely using encryption, compression and segmentation).

The system allows for exporting of an unlimited number of files from the platform into specified locations.

Overview

  • Exporting Files After File Search
  • Exporting Files from Navigation Tree

Exporting Files After File Search

1. Click on the Files Tab, located in the top navigation menu.

Files Tab

2. Perform any file search using the three query parameters and click the Search button to obtain the desired file results for export.

File Search Criteria

3. Select the checkbox(es) located to the left of the file name(s) to select the file(s) for export. The checkbox for selected files will appear with an orange background color to indicate that they are selected. When files appear in the file results without a checkbox to select for export, this indicates that the user has permissions to view the file but does not have the permissions to export it.

File Selected For Export

4. Repeat this process until all desired files are selected.

Selecting Multiple Files For Export

5. Click on the highlighted Export Data button, located at the top of the files list, to begin the export process.

This image has an empty alt attribute; its file name is image-171-1024x449.png
Export Data Button

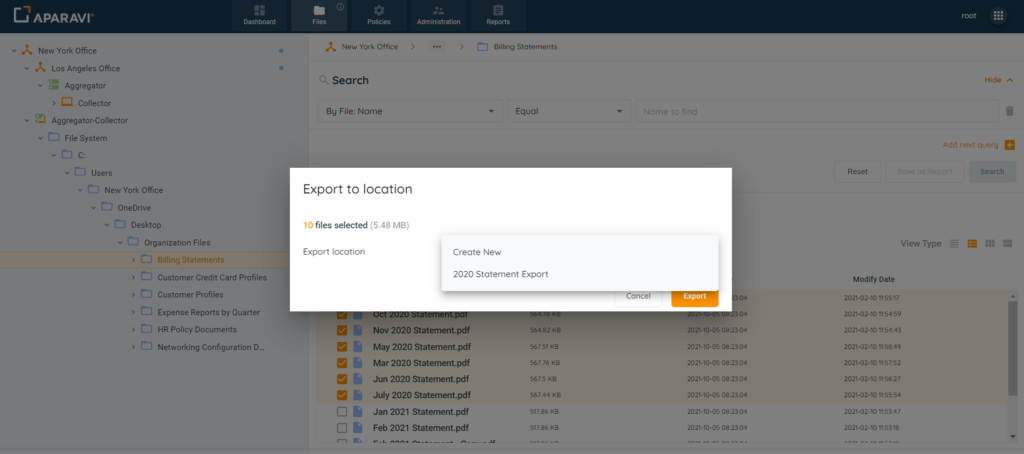

6. Once clicked, the Export to Location pop-up box will display and offer the Export Location drop-down menu, in order to export to a previously selected location or configure a new one.

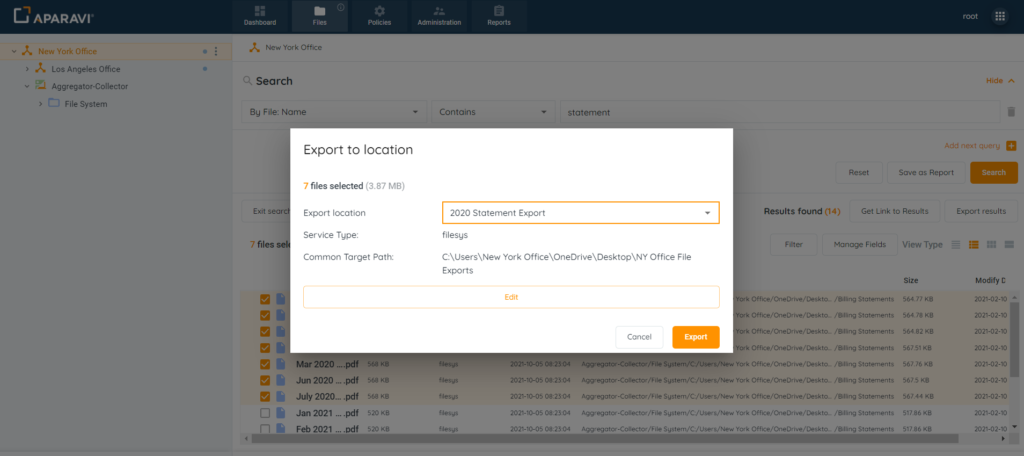

Export to Location Pop-up Box

If Configuring a New Location:

  • Choose [Create New] from the drop-down menu.
  • Once all information has been entered into the Export to Location pop-up box, click on the Validate button, which will validate the information entered and the Save button will highlight.
  • Click on the Save button, located at the bottom right-hand side of the pop-up box.
  • The system will then display all entered information in the Export to location pop-up box and offer an Export Button. Click on the Export button to complete the export.

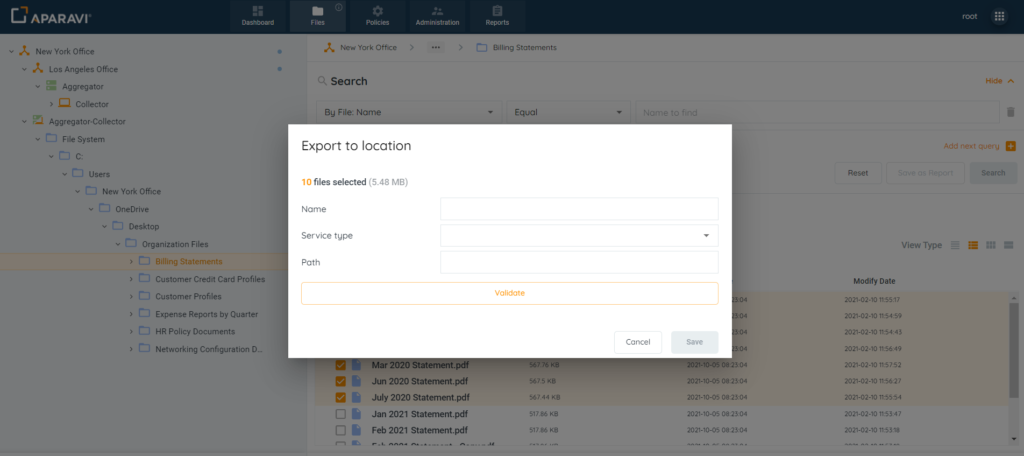

Configuring a New Export Location

If Selecting a Previously Configured Location:

  • Click on the already configured location from the drop-down menu.
  • Click on the Export button, located at the bottom right-hand side of the pop-up box.

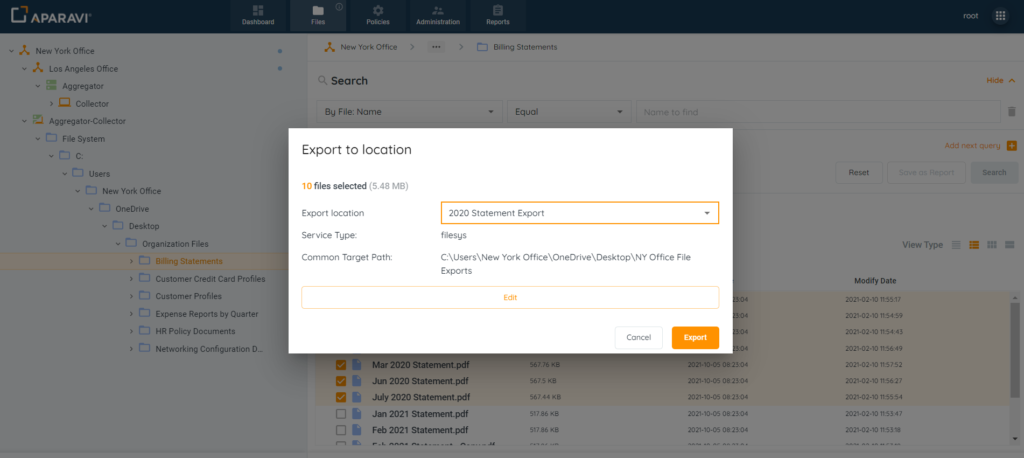

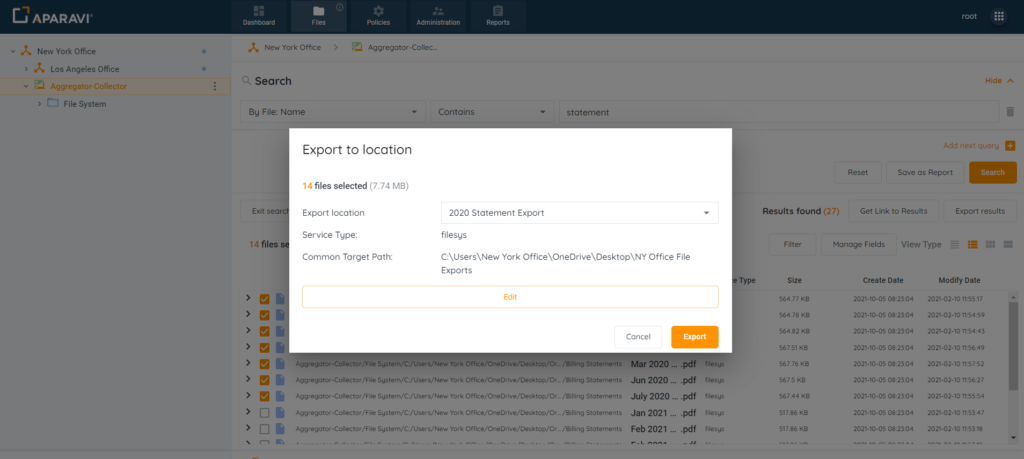

Exporting to Previously Saved Location

7. To view the exported files, check the location specified during the export process, and the selected files will be available in their native format.

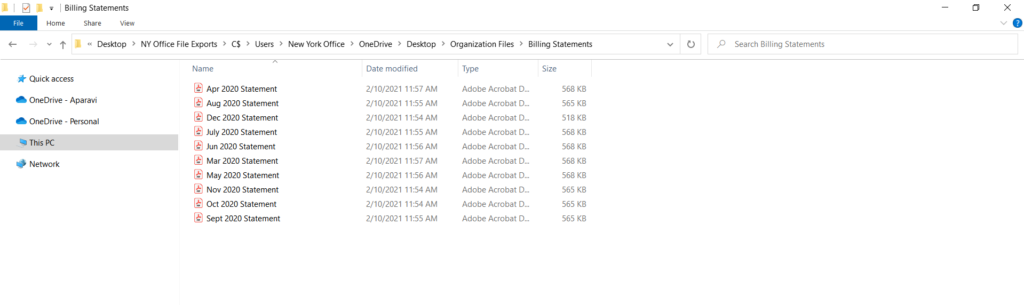

Exported Files

Exporting Files from Navigation Tree

1. Located on the left-hand side of the screen, expand the nodes and folders by clicking on the arrows located to the left of each of their names. Once the folder containing the file(s) are displaying, click on the folder.

Folder in Navigation Tree

2. Select the checkbox located to the left of the file name to select the file for export. If a file appears after selecting a folder, but does not have a checkbox to select for export, this is due to the user having permissions to view the file, but not export it.

File Selected for Export

3. Repeat this process until all desired files are selected.

Multiple Files Selected for Export

4. Click on the highlighted Export Data button, located at the top of the files list, to begin the export process.

This image has an empty alt attribute; its file name is image-178-1024x457.png
Export Data Button

5. Once clicked, the Export to Location pop-up box will display and offer the Export Location drop-down menu, in order to export to a previously selected location or configure a new one.

Export to Location Pop-up Box

If Configuring a New Location:

  • Choose [Create New] from the drop-down menu.
  • Once all information has been entered into the Export to Location pop-up box, click on the Validate button, which will validate the information entered and the Save button will highlight.
  • Click on the Save button, located at the bottom right-hand side of the pop-up box.
  • The system will then display all entered information in the Export to location pop-up box and offer an Export Button. Click on the Export button to complete the export.
Configuring New Export Location

If Selecting a Previously Configured Location:

  • Click on the already configured location from the drop-down menu.
  • Click on the Export button, located at the bottom right-hand side of the pop-up box.
Exporting to Previously Configured Location

6. Check the location specified during the export process, and the selected files will be available in their native format.

Exported Files
